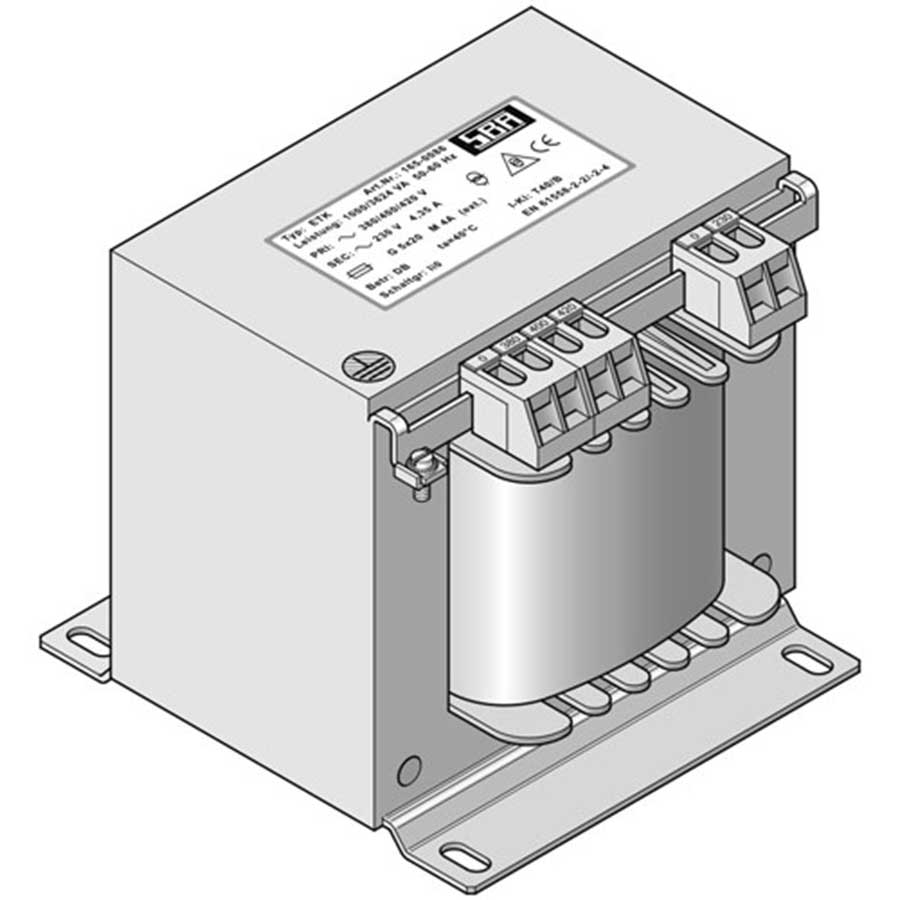

Transformer Type ETK
Specifications
Max. input voltage 750 V
Vector group I0
Max. output voltage 750 V
Protection class IP 00
Insulation class B
Ambient temperature 40 ° C
Frequency 50-60 Hz
Power range 50 VA – 3000 VA
Protection class I
Transformer Type ETK
Transformers (single or three-phase) are essential elements in the operation and safety of electrical applications. They are manufactured by OpenSupply on the basis of EN 61558-2-20, via special core assemblies and high-quality vacuum impregnation using black polyester resin. We make network, commutation and reactors.
Applications:
-
Control transformers for supplying control circuits in switching devices, distributions, machines, etc., in accordance with VDE 0113 / EN 60204.
Performance
-
Open design (IP 00, installation max. IP 23)
-
Individual coils
-
Double insulation
-
Space requirements according to DIN 41 308
-
Secure connections according to VBG 4 (additional plug connections on request)
-
High-quality, tropical vacuum impregnation using black polyester resin
-
Wear-proof, heat, UV and solvent-resistant type plate
-
Optionally available with DIN rail adapter up to 200 VA
-
Special versions available on request
