DC power supply Type EGX
Specifications
Input voltage 230V
Vector group I0
Output voltage SELV DC 12 V or 24 V according to EN 61131-2
Protection class IP 20
Max ambient temperature 40 ° C
Output current 0.5 – 2.5 A (DC)
Frequency 50-60Hz
Power range 12 W – 60 W
Immunity EN 61000-6 -1 / -2
Protection class II

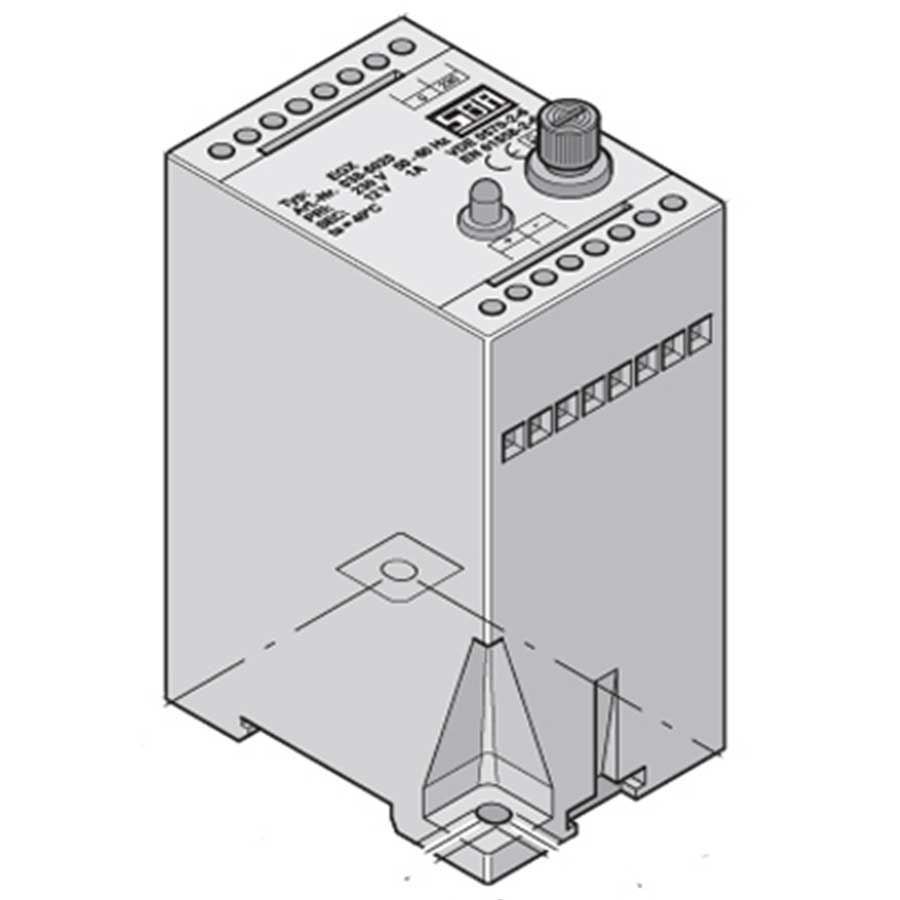

DC power supply Type EGX
In accordance with VDE 0570-2-6 or EN 61558-2-6, DC power supplies are used with machines and devices with safe ultra-low voltages. The built-in transformer guarantees a secure network separation. These quality products are available with VDE-UL certification and guarantee a trouble-free operation.
Applications:
For general applications, such as i control circuits in machines, distributions, etc. with safe extra low voltage (SELV). Especially suitable as a power supply for programmable logic controllers (PLC).
Performance
- Compact design in black plastic housing (IP 20)
- Complies with EN 61558-2-6
- Coils separated by double / reinforced insulation (safe separation)
- Can be screwed onto DIN rail and clicked according to DIN EN 50022
- Devices have built-in fuses
- No additional protection required during installation
- Output voltage is indicated by a green LED
