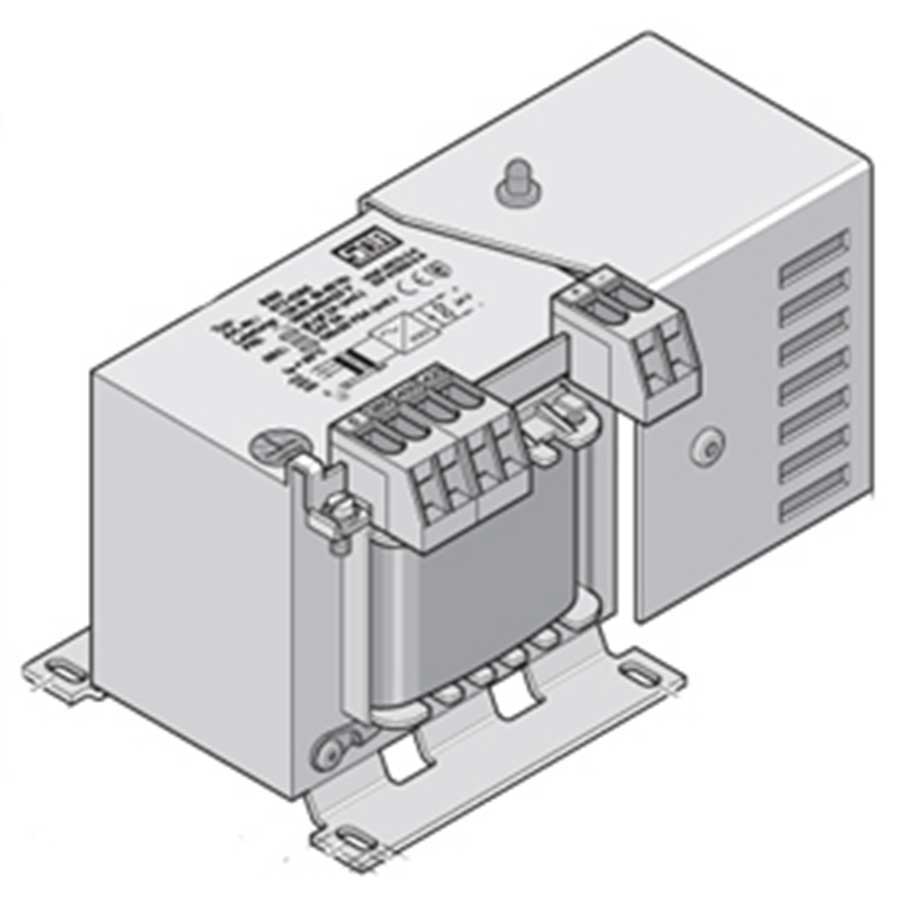

DC power supply Type BSN

Specifications

Input voltage: AC 220/230/240 V or AC 380/400/420 V.
Link group: Ii0 (with shield winding)
SELV DC 24 V output voltage according to EN 61131-2
Protection class: IP 00
Ambient temperature: max. 60 ° C
Frequency: 50-60Hz
Power range: 72 W – 192 W
Remaining wrinkle <5%
Transmitted malfunction EN 61000-6 -3 / -4, (Class B)
Immunity EN 61000-6 -1 / -2

DC power supply Type BSN

 In accordance with VDE 0570-2-6 or EN 61558-2-6, DC power supplies are used in switching equipment, distribution boards, machines and devices with ultra-low voltages. The built-in transformer guarantees a secure network separation. These high-quality products are available with VDE-UL certification and guarantee a smooth operation.

N

Applications:

For general use, for example for circuits in switching devices, distributions, machines, equipment, etc. With safety extra-low voltage (SELV). Especially suitable as power supply for programmable logic controllers (PLCs).

Performance

  • Open design (IP 00, installation max. IP 23)
  • DC power supply according to EN 61558-2-6
  • Mounting dimensions according to DIN 41308
  • Secure connections on screw connections
  • Wiring at the output: Varistor, filter capacitor (105 ° C) and discharge resistor
  • Components at the output-side are covered according to VDE 0106, part 100
  • High-quality, tropical vacuum impregnation with black polyester resin
  • The output voltage is indicated by a green LED
