Coils Type DNE I


Protection class: IP 00
Ambient temperature: up to 40 ° C
Max frequency: 400 Hz
Thermal class: 130 (B)
Nominal voltage: max. 1000 V
Reactive power: max. 5000 VAr
Protection class: I

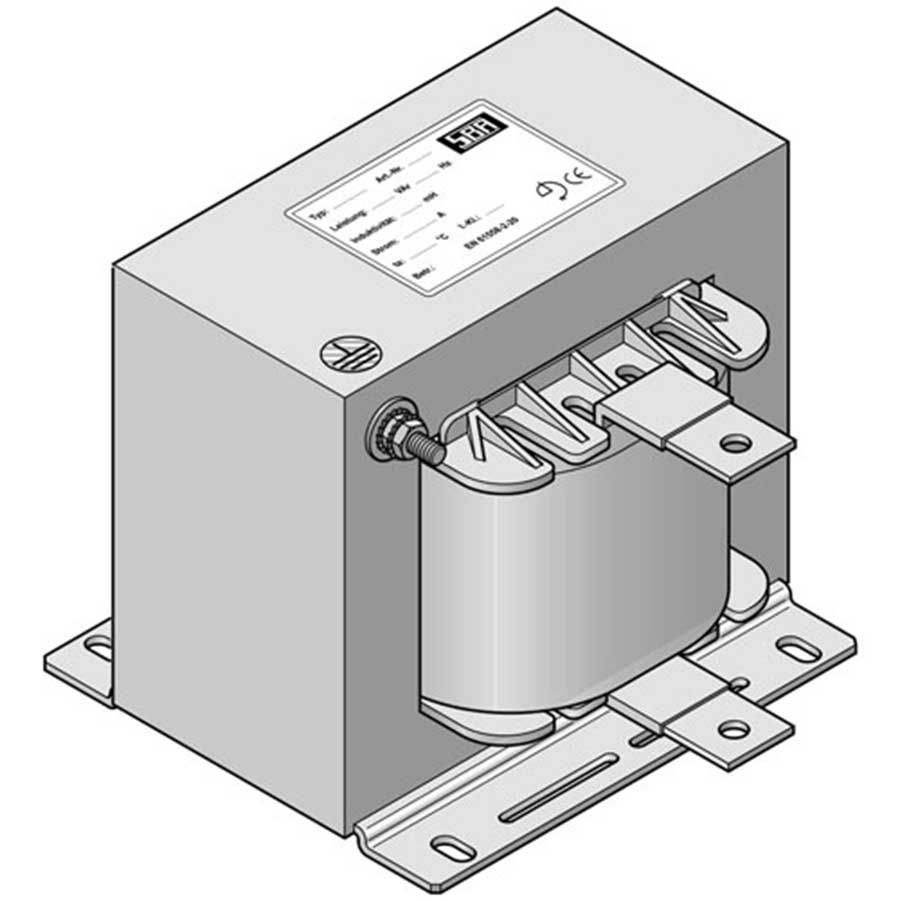

Coils Type DNE I

Single or three-phase coils are essential elements in the operation and safety of electrical applications. They are manufactured by OpenSupply on the basis of EN 61558-2-20, with special core assemblies and a high-quality vacuum impregnation using black polyester resin. We produce network and commutation, as well as reactors.




To limit peak currents, prevent and solve network outages, provide capacitors in compensation systems, reduce the neutral current in local three-phase networks and limit currents in discharge lamps. Customization and construction ensure optimum usability.


  • Open design (IP 00, installation max. IP 23)
  • Space requirements in accordance with DIN 41308
  • Depending on the nominal current: screw terminals (max. 50 A) or Cu rail
  • Very low noise levels thanks to special core construction and high-quality, tropical vacuum impregnation using black polyester impregnation resin
  • Wear-proof, heat-, UV- and solvent-resistant type plate
  • Special versions are available upon request
