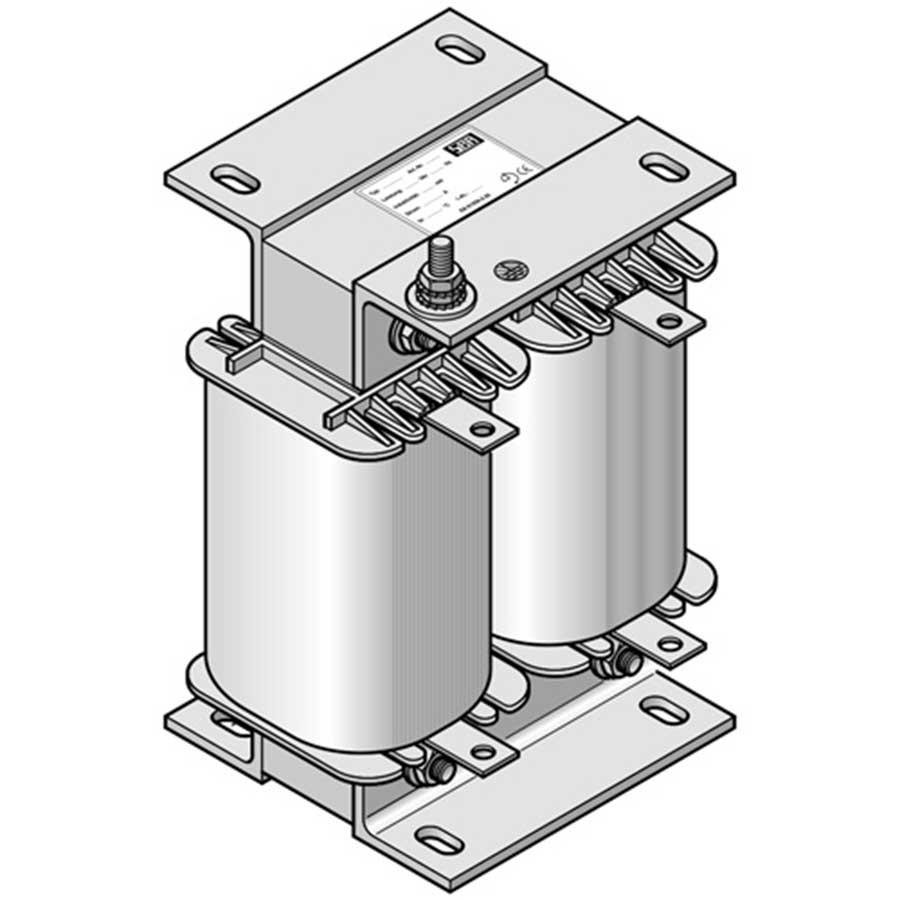

Coil Type DGE II


Protection class IP 00
Ambient temperature type 40 ° C
Frequency 0-300 Hz
Thermal class 130 (B) / 155 (F)
Energy content max. 640 Ws
Nominal inductance max. 1000 mH
Nominal voltage max. 1000 VDC
Protection of classes I

Coil Type DGE II

Single or three-phase coils are important elements in guaranteeing the proper functioning and safety of electrical applications. We manufacture them on the basis of EN 61558-2-20, via special core assemblies and using high-quality vacuum impregnation in black polyester resin. We make network, commutation and reactors.



To reduce noise and heat generation from connected applications motors and a reduction of power loss, and of wear on current exchangers, extending the applications’ service life. Parallel operation of phase-shifted current converters by suppressing compensation currents possible. Customization and construction ensure optimum usability.


  • Open design (IP 00, installation max. IP 23)
  • Depending on the nominal current: screw terminals or Cu conductor rail
  • Thanks to special core construction and high-quality, tropical vacuum impregnation in black resin with a very low noise level
  • Wear-proof, heat-, UV- and solvent-resistant type plate
  • Special versions are available upon request
